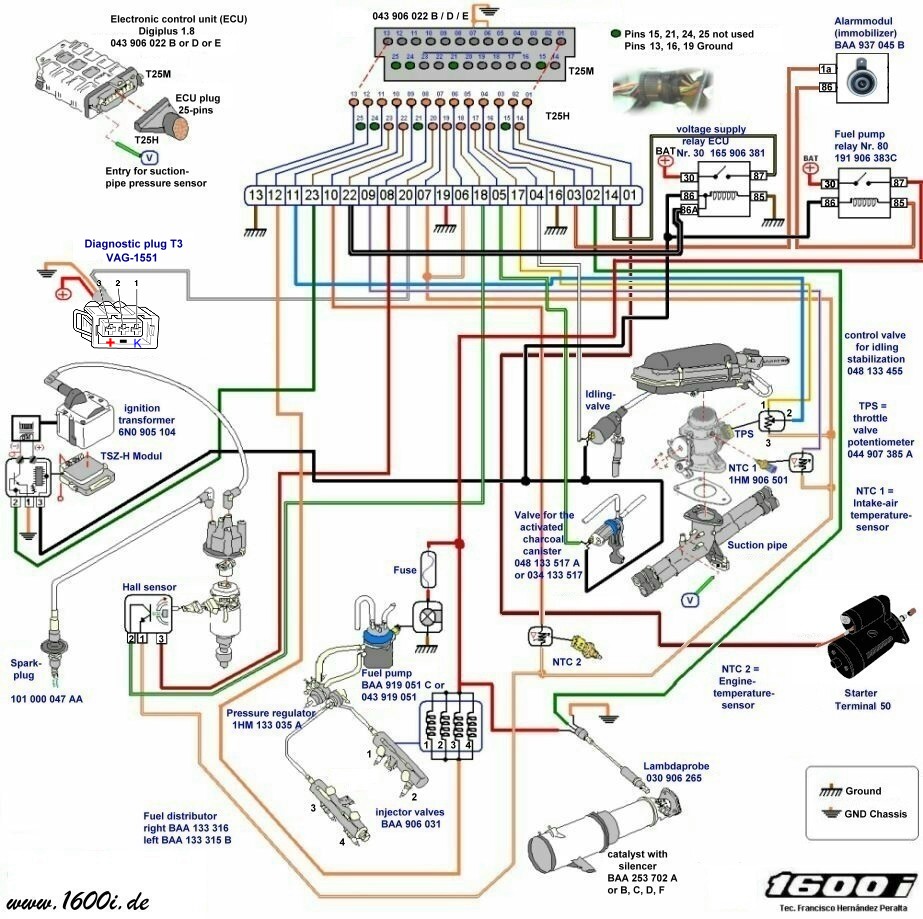

The very best 1600i overview
With a click into the picture you get a bigger one, but this will have 400KB.
There are some errors in this drawing !!!
- Pin 1 of the ecu is not as shown connected with ground, its connected with Plus des Anlasser
- Pin 17 of the ecu is not as shown connected with pin 2 of the tps, its connected to pin 1 of the tps
- Pin 11 of the ecu is not connected as shown with pin 1 of the tps, its connected to pin 2 of the tps
