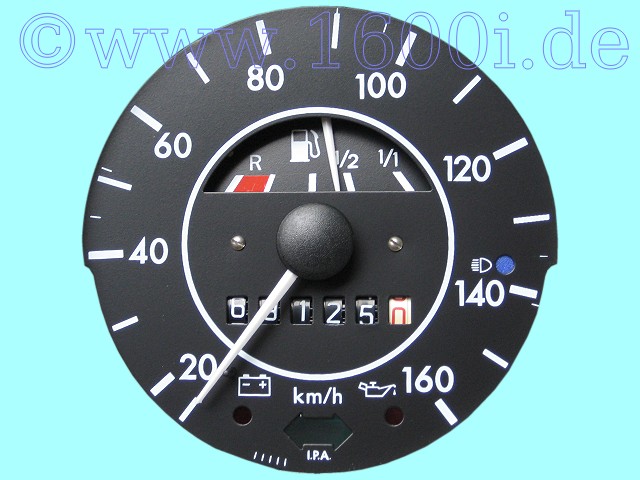

Speedometer - Der Tacho

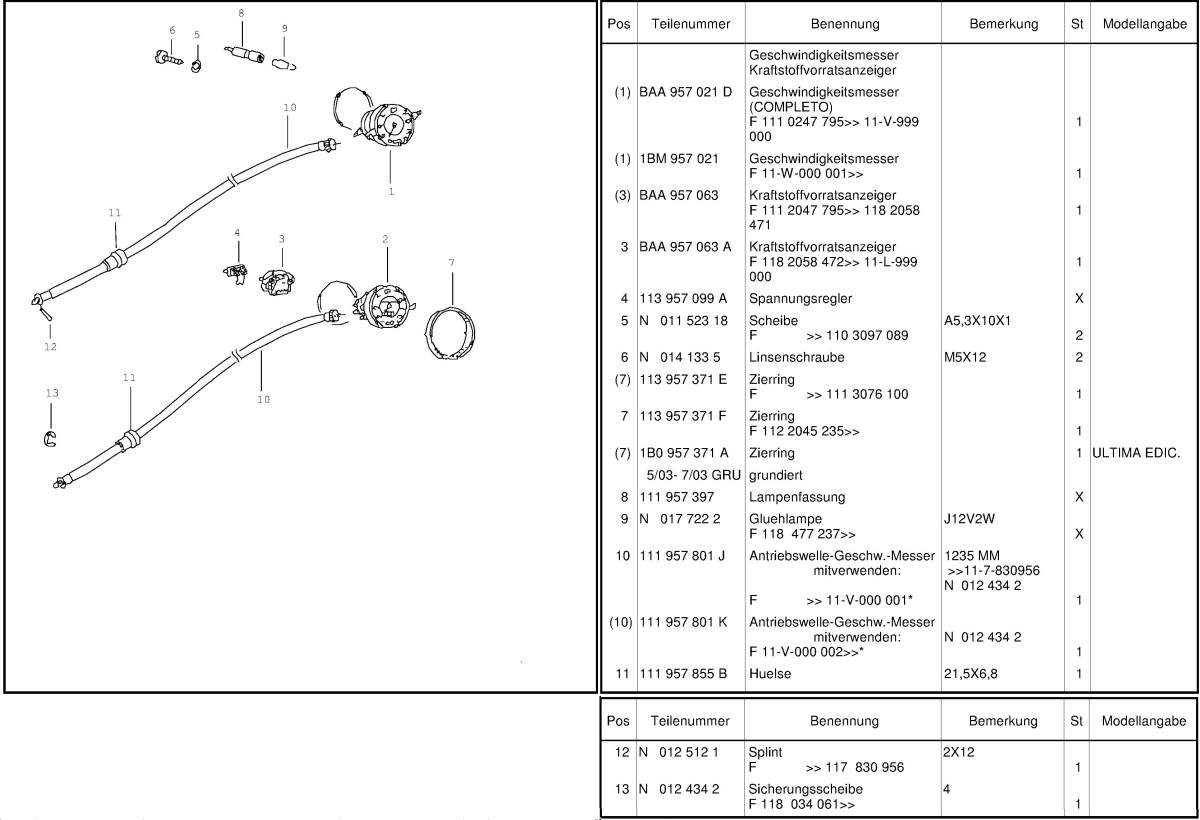

BAA 957 021 D oder 1BM 957 021
Die Belegung - the connections
Der Schaltplan - Wiring
Legende |
|||
| A2 | plus connection (15), in instrument panel wiring harness | ||
| A40 | plus connection -1- (30), in instrument cluster wiring harness | ||
| L10 | Tachobeleuchtung | Instrument Cluster Light | |
| K2 | Generatorwarnlicht | Generator (GEN) Warning Light | |
| K5 | Blinker | Turn Signal Indicator Light | |
| K1 | Fernlicht Anzeige | Headlight High Beam Indicator Light | |
| K7 | Bremswarnlicht | Brake and Parking Brake Warning Light | |
| K3 | Öldruck Warnlicht | Oil Pressure Warning Light | |
| N14 | Brake/Parking Brake Control Module | ||
| G1 | Tankanzeige | Fuel Gauge | |
| G | Tankgeber | Sender for fuel gauge | |
| G10 | Öldrucksensor | Engine Oil Pressure Sensor | |
| T2e | Black Double Connector behind instrument panel | ||
| T2 | Gray Double Connector behind instrument panel | ||
| T28/10 | 28-Pin Connector in engine compartment, left | ||
